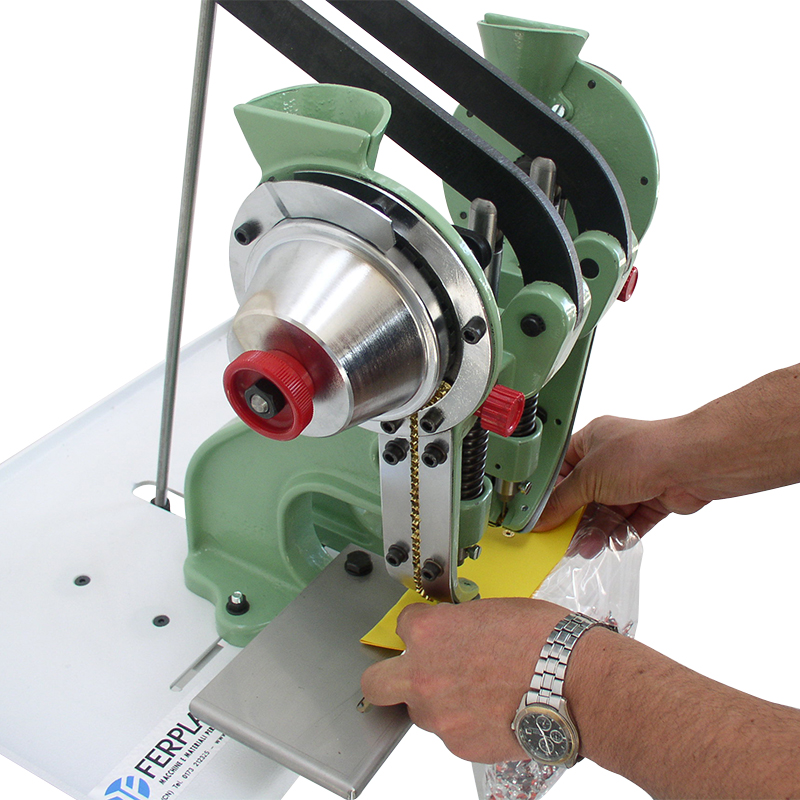

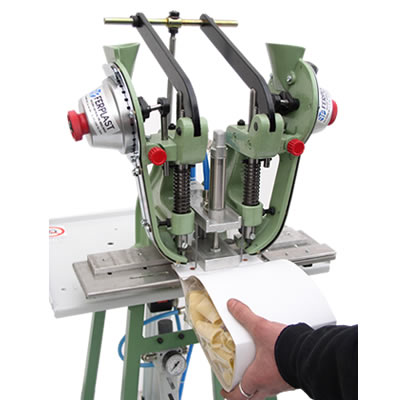

DOUBLE HEAD MECHANICAL EYELETING MACHINE

Mechanical eyelet machine with pedal, double head with automatic feeder and support frame, suitable for any process where the simultaneous closing of two eyelets is required.

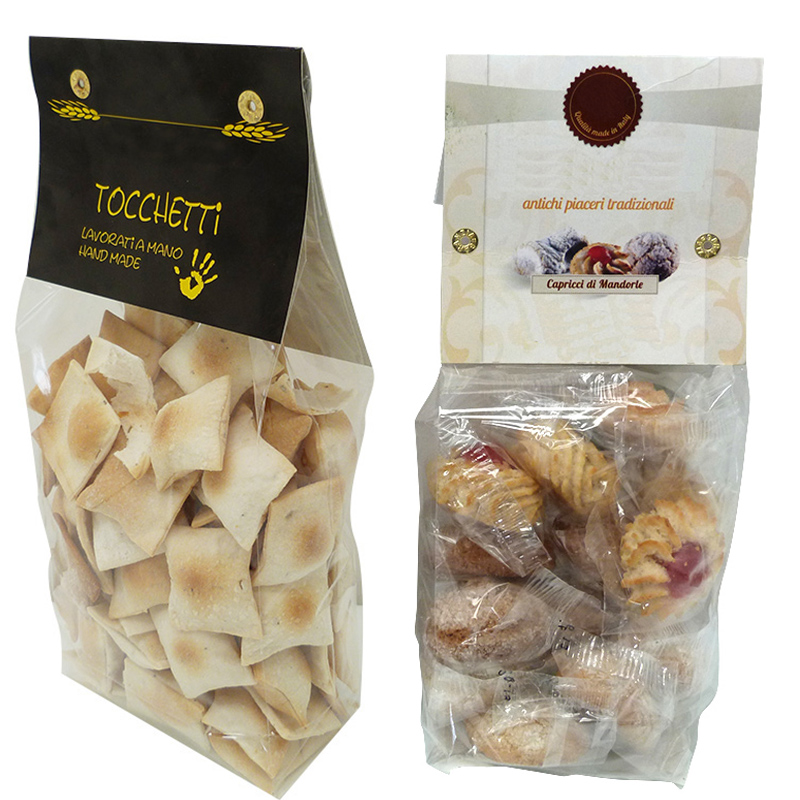

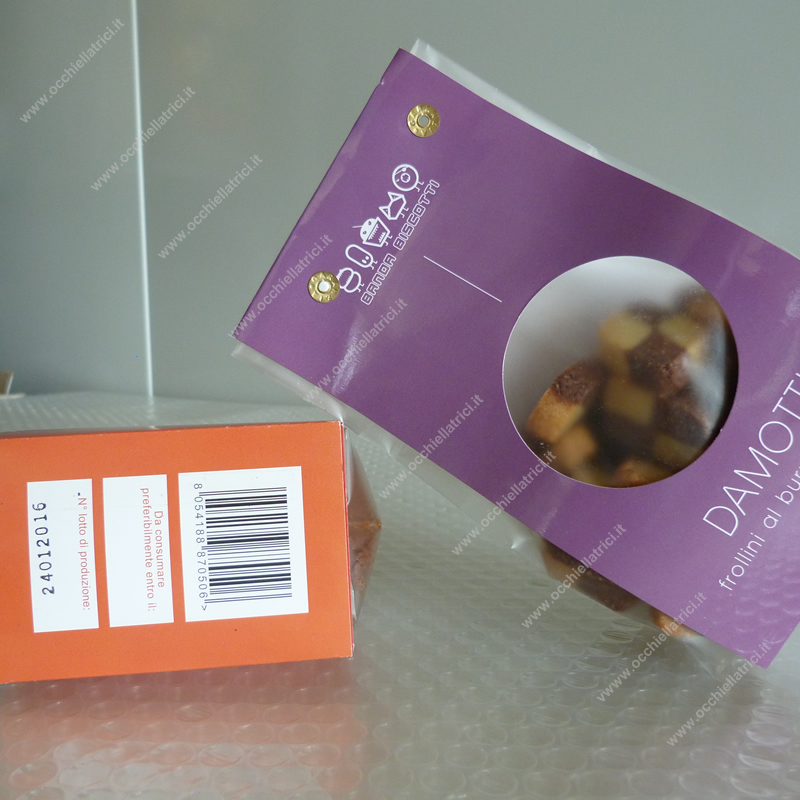

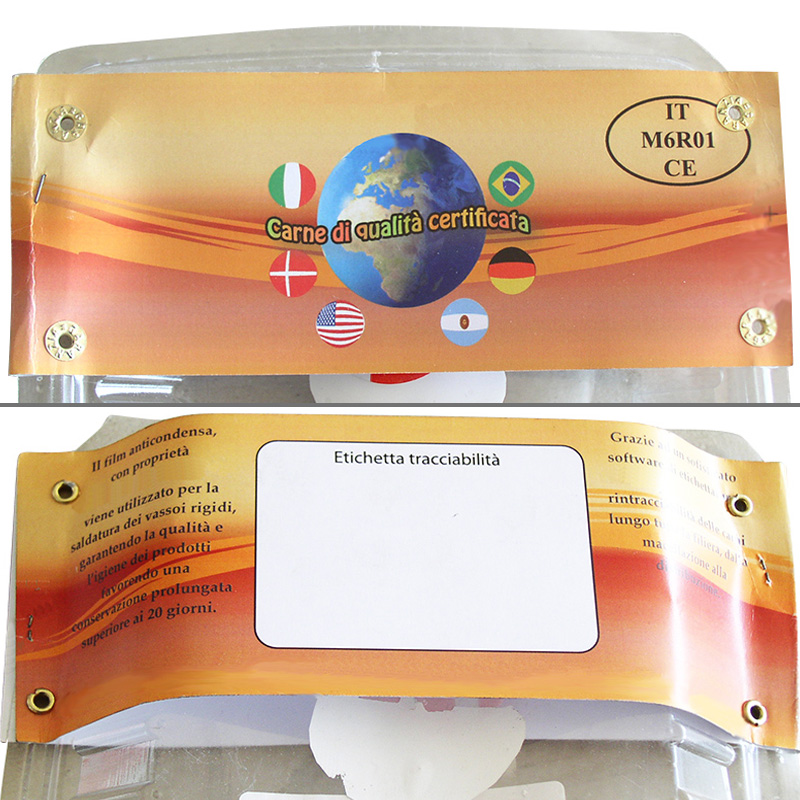

The eyelet machine finds application in the paper industries, bank or post offices and wherever there is the need to seal your products safely but the greatest use occurs in the food sector for the sealing and simultaneous application of printed cards on plastic bags.

TECHNICAL DATA

2 MECHANICAL HEADS

Mechanical cast iron support

Tubular frame

mm. 25 x 25

Painted steel top

mm. 360 x 500

Height with table

mm. 1400

Worktop height

mm. 950

Length

mm. 520

Usable depth

mm. 125

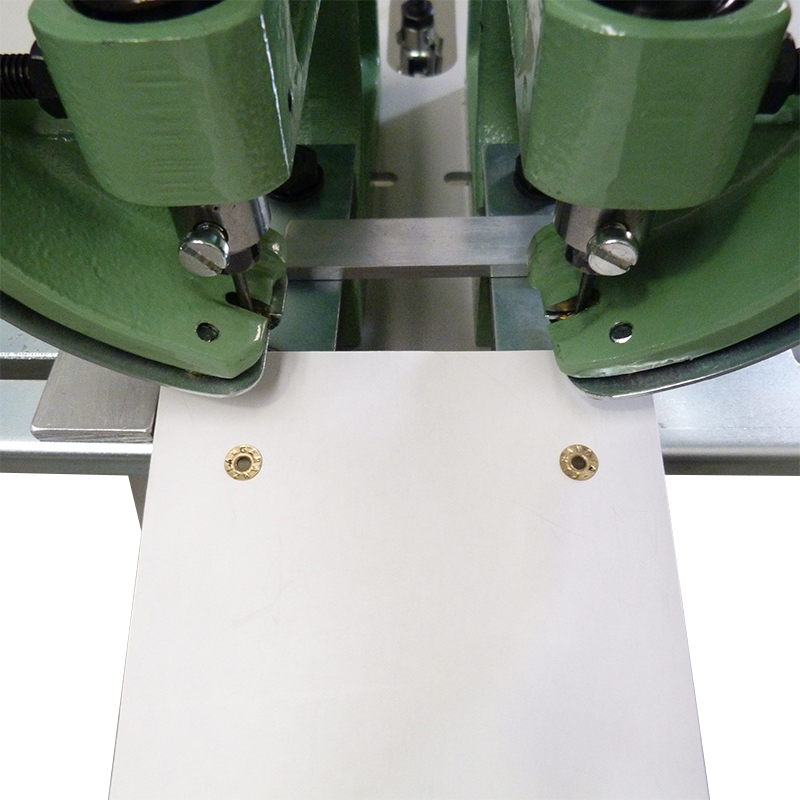

Adjustable distance between the two heads

da mm. 40 a mm. 200

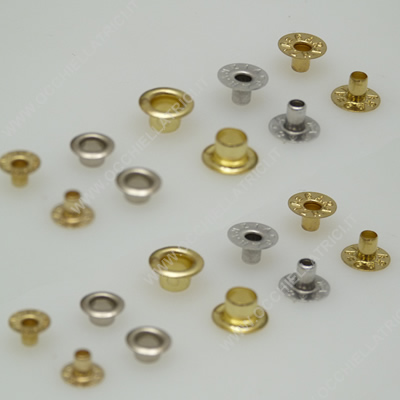

Usable eyelets

tipo: 9 – 7 – 051

Automatic eyelet feeder

Weight with table

Kg. 36
