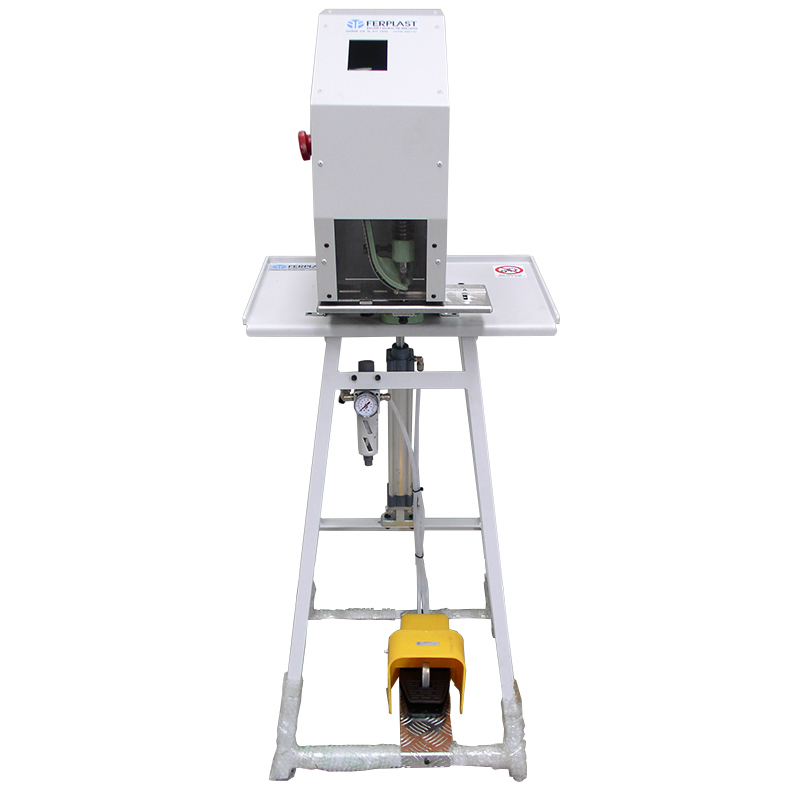

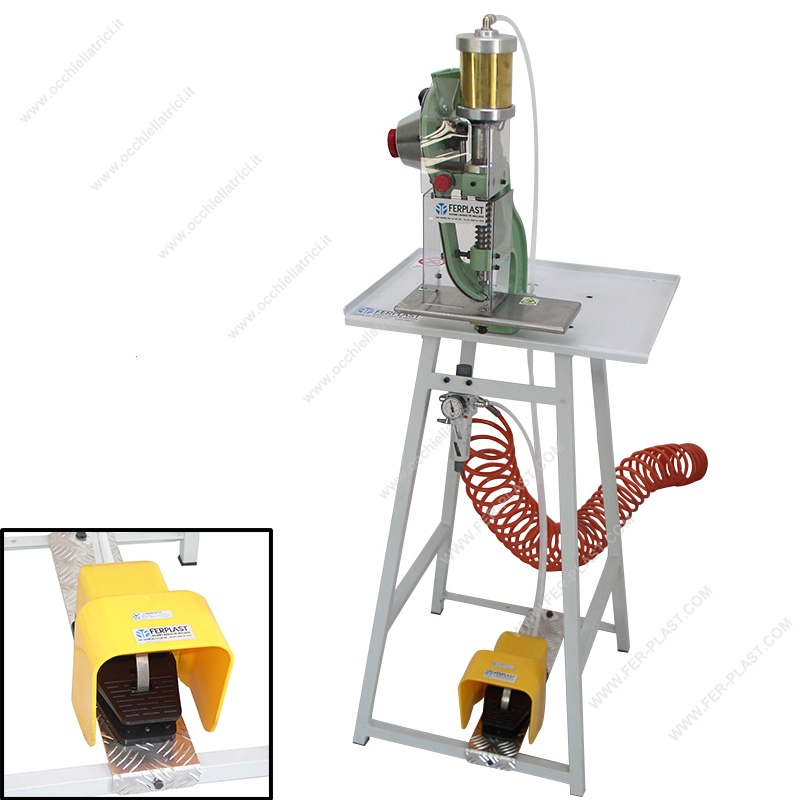

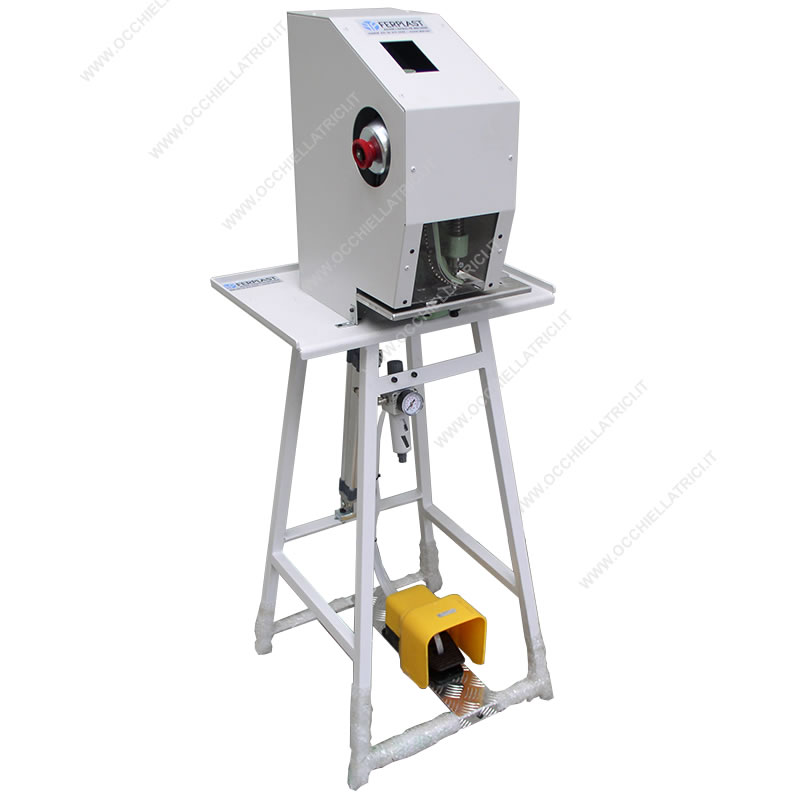

ONE HEAD PNEUMATIC EYELETING MACHINE

Single-head pneumatic eyeleting machine with automatic feeder, complete with support frame and safety guards.

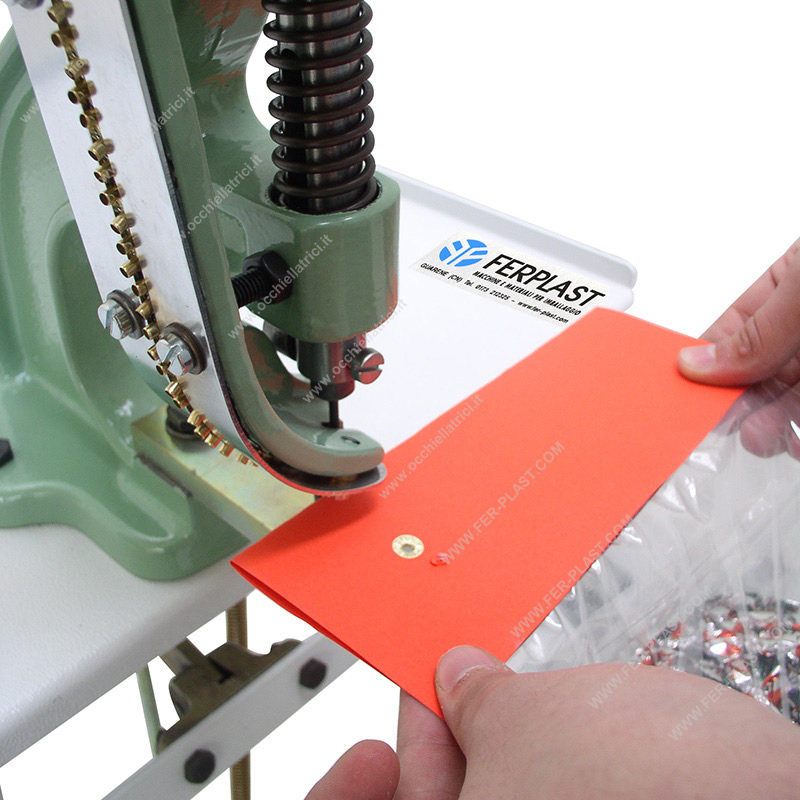

The eyeleting machine is used in the paper industries, bank or post offices and wherever there is a need to safely seal your products, but the greatest use is in the food sector for sealing and simultaneously applying printed cards on plastic bags.

The standard model is equipped with a cylinder mounted on the support structure. On request it is possible to have the model with a direct cylinder mounted on the head of the eyeleting machine.

TECHNICAL DATA

1 PNEUMATIC HEAD

Mechanical cast iron support

Tubular frame

mm. 25 x 25

Painted steel top

mm. 360 x 500

Height with table

mm. 1400

Worktop height

mm. 950

Length

mm. 520

Usable depth

mm. 125

Air consumption

6 bar 50 litri/min.

Usable eyelets

tipo: 9 – 7 – 051

Automatic eyelet feeder

Weight with table

Kg. 26



Contact us by writing an email to info@occhiellatrici.it OR call us at 0173212325

Fill out the form to be contacted by our staff
