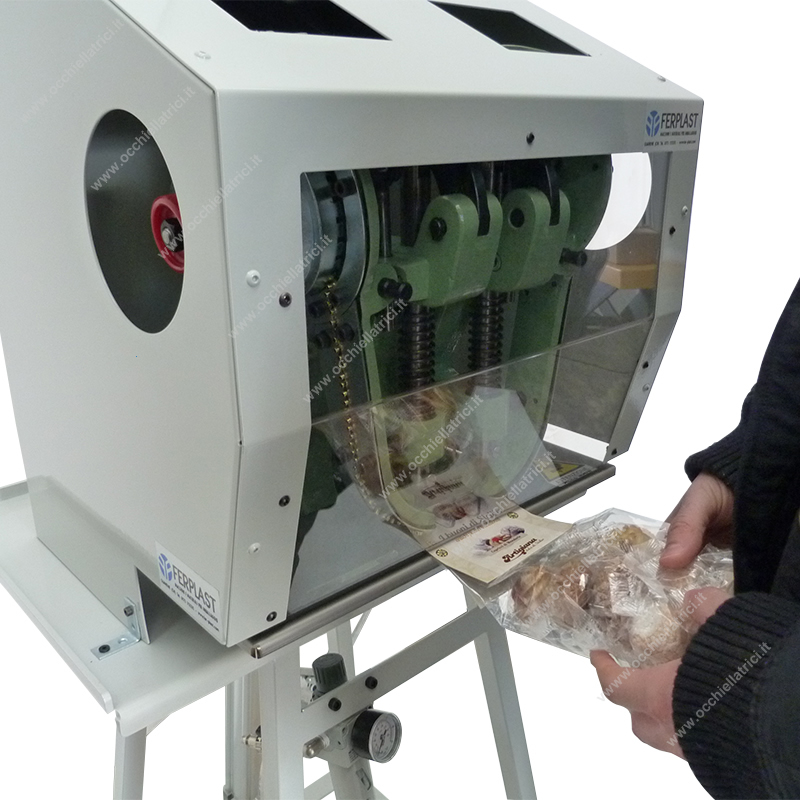

PNEUMATIC DOUBLE HEAD EYELETING MACHINE

Pneumatic double-head eyelet machine with automatic feeder, suitable for any process requiring the simultaneous closing of two eyelets, complete with support frame and safety guards.

The eyelet machine is used in the paper industry, bank or post offices and wherever there is a need to safely seal your products, but the greatest use occurs in the food sector for sealing and simultaneously applying printed cards on plastic bags.

TECHNICAL DATA

2 PNEUMATIC HEADS

Mechanical cast iron support

Tubular frame

mm. 25 x 25

Painted steel top

mm. 360 x 500

Height with table

mm. 1400

Worktop height

mm. 950

Length

mm. 520

Usable depth

mm. 125

Adjustable distance between the two heads

from mm. 45 to mm. 100 (from 45 mm to 180 mm optional)

Air consumption

6 bar (at 60 strokes/min.) lt/min 40

Usable eyelets

tipo: 9 – 7 – 051

Automatic eyelet feeder

Weight

36 Kg
